Protein Three-Dimensional Structure

Protein Three-Dimensional Structure: How a Sequence Folds Itself

A 100-residue protein could adopt more shapes than it could ever sample in the age of the universe, yet it folds into one in milliseconds. The answer is constraints. This lesson builds the four levels of structure from a single rule — the backbone can rotate only two bonds per residue — then shows how the Ramachandran plot, the alpha helix, the beta sheet, and the whole sequence-to-structure-to-function chain fall out of it, ending with Anfinsen's proof that the fold is written in the sequence and the diseases that follow when one letter changes.

A 100-residue protein can adopt roughly 10⁴⁷ shapes if each residue has just three backbone options. Searching them one at a time would take longer than the universe has existed. Yet the myoglobin in your muscle folds into one exact shape in milliseconds — every copy, the same fold, every time. How?

The answer is the most useful idea in this chapter: constraints. A protein does not search for its fold. The sequence encodes a set of restrictions, and those restrictions eliminate almost every wrong shape before folding even begins.

The idea: four levels, one rule

A protein is built in layers. The primary structure is the amino acid sequence — residues linked N-terminus to C-terminus by peptide bonds, in an order that is exact, not random. Frederick Sanger proved this in 1955 by reading insulin end to end: 51 residues, one defined sequence. That single fact carries the whole chapter, because:

Sequence dictates structure. Structure dictates function. One changed residue can break both.

Sickle cell anemia is one wrong letter — Glu to Val at position 6 of beta-globin — turning a charged surface residue hydrophobic so the protein polymerizes into fibers. The sequence is not arbitrary; it is the instruction set.

The next three levels are what that instruction set produces. Secondary structure is local: hydrogen bonds between backbone groups of residues near each other in sequence, folding the chain into alpha helices and beta sheets. Tertiary structure is global: the whole chain packed into a compact 3D shape, driven by interactions between R-groups far apart in sequence. Quaternary structure is assembly: several folded chains held together into one machine — hemoglobin is two alpha and two beta subunits, each myoglobin-like, working as one.

Here is the rule underneath all of it. The peptide bond is planar — six atoms locked in a single plane by partial double-bond character, unable to rotate. So of the three backbone bonds per residue, one is frozen. Only two can turn: phi (φ) and psi (ψ). The entire path of a protein backbone is set by these two angles, repeated down the chain.

The Ramachandran plot: where folding gets its constraints

Try it: the Ramachandran plotdrag the point

What this φ/ψ looks like

Two free angles sounds like freedom. It is not. Most φ/ψ combinations are impossible — the backbone atoms would crash into each other. When G. N. Ramachandran sat down in Madras in 1963 and calculated which pairs were sterically allowed, the survivors clustered into a few compact islands and left the rest of the map empty. Only about 15% of all φ/ψ space is accessible. The forbidden 85% is the first wall of constraints, and a protein never has to consider it.

The allowed islands are not random either. One island is exactly the geometry of the alpha helix: a right-handed coil with 3.6 residues per turn, every backbone C=O hydrogen-bonded to the N–H four residues ahead, R-groups bristling outward. A second island is the beta sheet: strands stretched nearly flat, R-groups alternating above and below, hydrogen-bonded to neighboring strands running parallel or antiparallel. Pauling worked out the alpha helix from a sickbed in 1948 — paper, a slide rule, and the chemistry — and published both helix and sheet, predicted from first principles, in 1951, before anyone had seen either. The Ramachandran plot is why he could: those structures sit where the chemistry allows the backbone to go.

Proline shows the rule has teeth. Its ring locks φ and it has no backbone N–H to donate, so it breaks alpha helices. The same two features make it the backbone of the collagen triple helix, where a Gly-Pro-Pro repeat lets three chains wind together with glycine — the only residue small enough — at the crowded center every third position. What kills one structure builds another. Substitute anything larger than glycine into that center and you get osteogenesis imperfecta, brittle-bone disease. Constraints, again, all the way down.

The payoff: sequence is the whole answer

So where does the folding information actually live? In the sequence, in helper proteins, in the cell? Christian Anfinsen settled it. He unfolded ribonuclease completely with urea and a reducing agent — zero activity, a random coil — then washed the chemicals away and watched the enzyme refold on its own to full activity. Nothing in the tube but the protein and water. The conclusion, in his words: “The native conformation is determined by the totality of interatomic interactions and hence by the amino acid sequence, in a given environment.” The fold is the lowest-energy state the sequence can reach.

That winning margin is thin. A folded protein is only marginally more stable than its unfolded coil, which is why heat can undo it — and when it melts, it does so all at once, over just a few degrees, because the whole cooperative structure lets go together.

Folding is cooperative — the melt curve⚙ original · interactive
Folded at 37 °C
~100%
Melting temperature
60 °C

A protein does not loosen gradually; it holds its shape, then unravels over a few degrees. That sharp transition is the signature of cooperative folding.

Native proteins are only marginally stable — the folded state beats the unfolded one by the energy of just a few hydrogen bonds. A single disulfide or a thermophile's extra salt bridge can push Tm well up.

That resolves Levinthal’s paradox. Folding is not a random search; partly-correct intermediates are slightly more stable, so they are kept, and the protein funnels downhill toward its native state. Fifty years later AlphaFold gave the strongest computational evidence for it — a neural network trained only on sequence now predicts structure to near-experimental accuracy; it shared the 2024 Chemistry Nobel (alongside David Baker’s work on protein design).

The rule has telling exceptions. Intrinsically disordered proteins do not fold until they meet a partner. And prions take the same 253-residue sequence and reach a second stable fold, rich in beta sheet, that aggregates and kills. The native helix-rich fold is only kinetically trapped; the deadly aggregate is the lower-energy state the sequence could always have reached. The exceptions are real, and they matter, but they are the edge of a rule that holds across the proteome.

Seeing a fold: crystallography, cryo-EM, and Ramachandran plots

To know a fold, you have to see it. X-ray crystallography turns a protein crystal’s diffraction pattern into an atom-by-atom map; it gave Kendrew myoglobin in 1958 and Perutz hemoglobin in 1959, founding structural biology after more than twenty years of work each. Cryo-electron microscopy now does the same for large assemblies without crystals, by averaging thousands of frozen-hydrated images. And the cheapest first check on any new model is the Ramachandran plot: scatter every residue’s φ/ψ onto the map, and if the points fall in the allowed islands, the structure is plausible — if they stray into the forbidden zone, something is wrong. Drag the point above to feel why those zones exist.

How we measure it

X-ray crystallography

Fire X-rays at a protein crystal and the diffraction pattern encodes where every atom sits. Kendrew solved myoglobin this way in 1958 — the first three-dimensional protein fold ever solved — by stacking hand-drawn electron-density contours on sheets of plastic until the fold rose into three dimensions.

Reading a Ramachandran plot

Plot a residue's two rotatable backbone angles, phi against psi, and the allowed combinations cluster into two compact islands — one alpha-helix, one beta-sheet — with the rest of the map forbidden by atoms colliding. It is the first sanity check run on every new structure.

Denaturation and refolding (Anfinsen's assay)

Strip a protein to a random coil with urea and a reducing agent, watch activity vanish, then wash the chemicals away. If the protein refolds to full activity on its own, the folding instructions had to be in the sequence — nowhere else.

From the lecture

⚠️ Many of these slides use AI-assisted figures, so fidelity to exact chemical structure isn't always perfect. Treat them as a conceptual framework, not a reference for memorizing structures — for that, use the 3D molecules in the sidebar. Known artifacts are flagged on the affected slides.

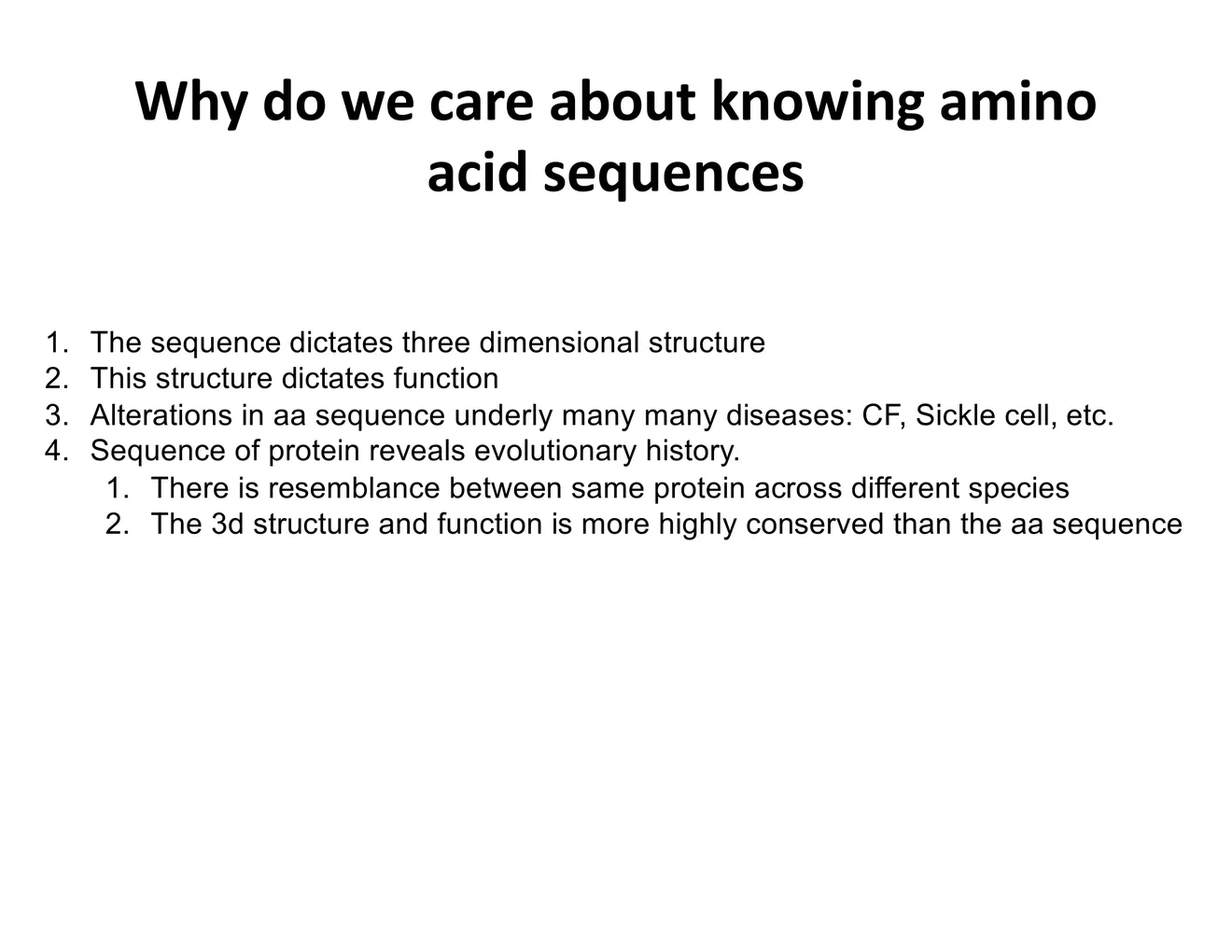

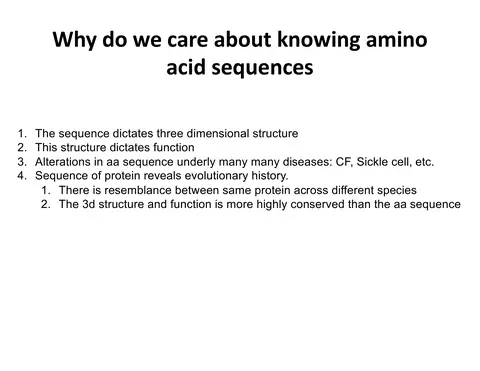

Why sequence matters: four reasons CH04 Protein Structure · slide 10
A numbered text slide listing four reasons sequence matters: it sets 3D structure, structure sets function, mutations cause disease, and sequence records evolution.
🔊 Listen
Presenter notes

Four connected reasons: sequence sets structure, structure sets function, mutations cause disease (cystic fibrosis, sickle cell), and sequence records evolution — with 3D structure more conserved than sequence itself.

1 / 12
Myoglobin — the first protein fold ever solved
Myoglobin — the first protein fold ever solved ● LIVE · RCSB PDB 1MBN
open 1MBN ↗
Loading live structure 1MBN from RCSB PDB…

Myoglobin — the first protein whose 3D fold was solved, by John Kendrew in 1958. Eight alpha-helices cradle a heme group. Every copy in your muscle folds into this exact shape in milliseconds — the Levinthal paradox made vivid. A clean example of tertiary structure.

Drag to rotate · scroll to zoom · right-drag to pan
Hemoglobin — quaternary structure
Hemoglobin — quaternary structure ● LIVE · RCSB PDB 2HHB
open 2HHB ↗
Loading live structure 2HHB from RCSB PDB…

Human deoxyhemoglobin — two alpha and two beta subunits, each myoglobin-like, assembled into one tetramer. Color the chains separately and quaternary structure becomes tangible: four polypeptides, held together non-covalently, working as a single machine.

Drag to rotate · scroll to zoom · right-drag to pan
Collagen triple helix — a fibrous protein
Collagen triple helix — a fibrous protein ● LIVE · RCSB PDB 1CAG
open 1CAG ↗
Loading live structure 1CAG from RCSB PDB…

A collagen model peptide — three chains wound into a right-handed triple helix. Every third residue must be glycine, the only amino acid small enough to fit at the crowded center. Same peptide-bond chemistry as the globular proteins, radically different architecture: the basis of tendon, bone, and skin.

Drag to rotate · scroll to zoom · right-drag to pan
Insulin — disulfide bridges from cysteine
Insulin — disulfide bridges from cysteine ● LIVE · RCSB PDB 1MSO
open 1MSO ↗
Loading live structure 1MSO from RCSB PDB…

Insulin is two short chains held together by three disulfide bridges between cysteine residues. Frederick Sanger sequenced insulin (the bovine form) in 1955; the fold and its cross-links are the same idea — covalent −S−S− bonds locking a protein's architecture in place.

Drag to rotate · scroll to zoom · right-drag to pan

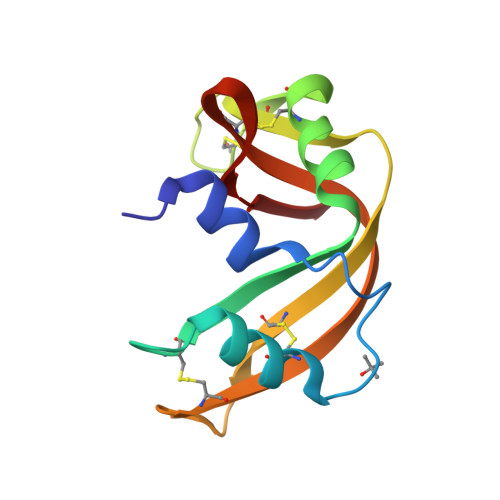

Ribonuclease A — Anfinsen's protein
Ribonuclease A — Anfinsen's protein ● LIVE · RCSB PDB 7RSA
open 7RSA ↗
Loading live structure 7RSA from RCSB PDB…

Bovine ribonuclease A — the enzyme Anfinsen unfolded and watched refold to full activity on its own. Its four disulfide bonds scrambled when denatured, then found their correct partners again when the denaturant was removed: proof that the folding information lives in the sequence.

Drag to rotate · scroll to zoom · right-drag to pan
Prion protein — when folding goes wrong
Prion protein — when folding goes wrong ● LIVE · RCSB PDB 1QM2
open 1QM2 ↗
Loading live structure 1QM2 from RCSB PDB…

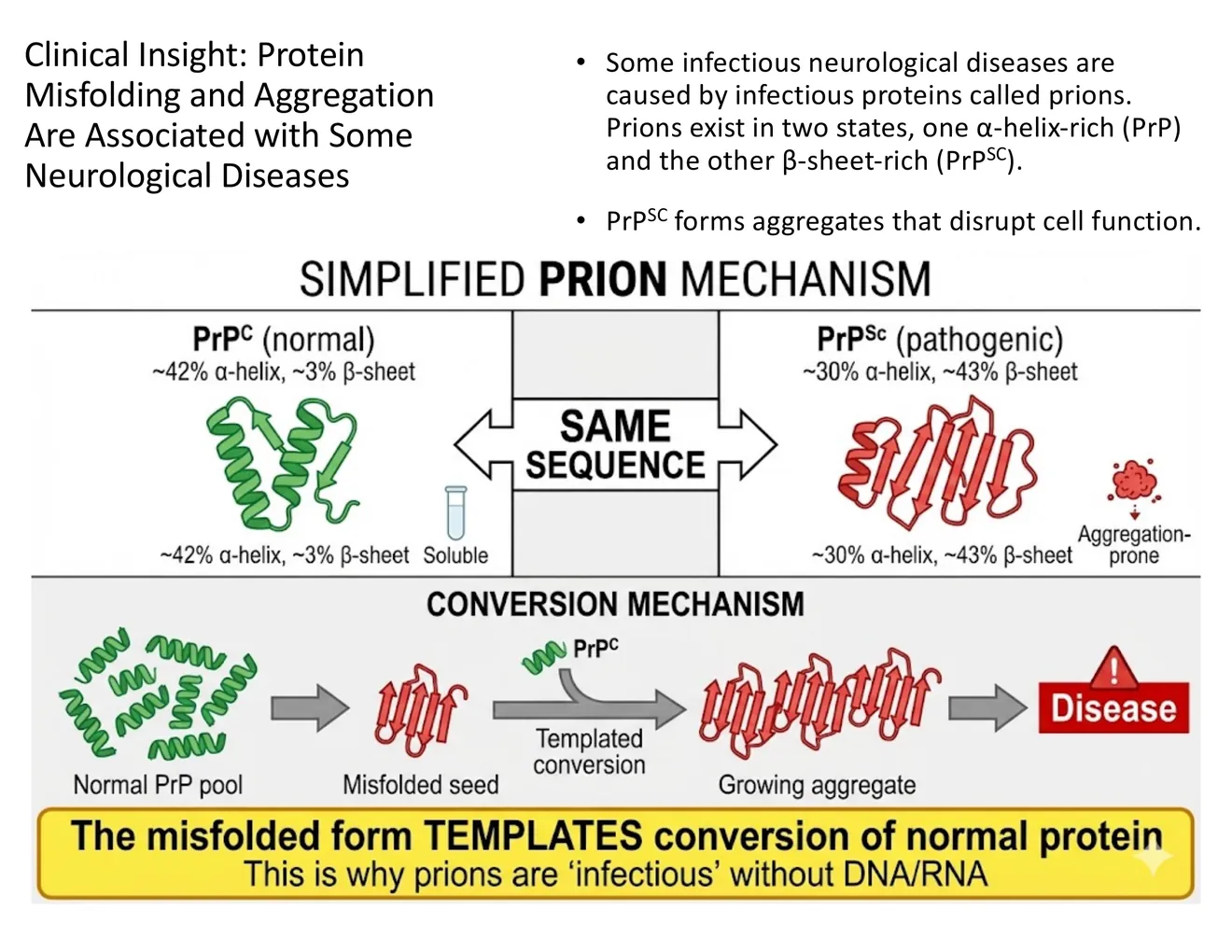

The human prion protein in its normal, helix-rich fold (PrPᶜ). The same 253-residue sequence can reach a second, beta-sheet-rich fold (PrPˢᶜ) that aggregates and templates its own spread — the sharpest exception to "one sequence, one fold."

Drag to rotate · scroll to zoom · right-drag to pan
Heme — the prosthetic group myoglobin cradles
Heme — the prosthetic group myoglobin cradles ● LIVE · PubChem 26945
open 26945 ↗
Loading live structure 26945 from PubChem…

Heme — the iron-bearing ring that sits inside myoglobin and each hemoglobin subunit and actually binds the oxygen. The protein fold builds the pocket; the heme does the catching.

Drag to rotate · scroll to zoom · right-drag to pan
Linus Pauling
AI-generated illustrated portrait of Linus Pauling

Linus Pauling 1901–1994

Predicted the alpha helix and beta sheet in 1951 — the two basic shapes of protein secondary structure — from chemical first principles, years before any experiment could confirm them.

In March 1948 Pauling was on his back in Oxford with a sinus infection, reading mystery novels until they bored him. Then he asked his wife to bring him paper and a slide rule. He drew a polypeptide chain at the right scale, kept every peptide bond flat the way the chemistry demanded, and folded the strip until it wound onto itself — a right-handed coil, 3.6 residues per turn, every backbone NH hydrogen-bonded to a CO four residues back. He noticed the rise per turn came out near 5.4 angstroms, not quite the 5.1 measured for keratin, and let the discrepancy stand rather than bend the chemistry to fit it. He had taught the world to deduce a structure from the bonds alone — and four years later the State Department refused to renew his passport, keeping him out of London where the DNA photographs waited. The man who could read structure from first principles missed the structure of the gene.

  • “I was so pleased with this structure that I stayed up until late in the night, pondering about it.”

✓ verbatim The Molecule Hunters (v10) — "Protein Three-Dimensional Structure," Linus Pauling profile.
Frederick Sanger
AI-generated illustrated portrait of Frederick Sanger

Frederick Sanger 1918–2013

Read insulin end to end in 1955 — the first complete sequence of any protein — proving an amino acid sequence is exact and specific, not random. He later invented DNA sequencing and won a second Nobel Prize.

Sanger spent twelve years on a single molecule. He worked on Tennis Court Road in Cambridge, a Quaker conscientious objector who had spent the war scrubbing hospital toilets with a mop, and he called himself "academically not brilliant" — he had taken three years over the first part of his degree. Insulin fought him: its disulfide bonds rearranged themselves mid-experiment, the molecule effectively lying to him about its own structure, until he caught them with a trace of thioglycolic acid. In 1955 he published the answer — fifty-one amino acids, two chains, three sulfur bridges, in one fixed order. He did it again with DNA in 1977, sequenced the first complete genome, and took a second Nobel in 1980, the only person of the century to win the chemistry prize twice. He declined a knighthood because he did not want to be different, and retired at sixty-five to his garden. When the great genome center at Hinxton asked to take his name, his only condition was a sentence that could stand as his whole creed: it had better be good.

  • “Practically nothing was known about the relative order in which these residues were arranged in the molecules.”
  • “academically not brilliant”
  • “it had better be good”

✓ verbatim The Molecule Hunters (v10) — "Protein Three-Dimensional Structure," Frederick Sanger profile.
Max Perutz & John Kendrew
AI-generated illustrated portrait of Max Perutz & John Kendrew

Max Perutz & John Kendrew 1914–2002 · 1917–1997

Solved the first atomic three-dimensional structures of proteins — Kendrew's myoglobin in 1958, Perutz's hemoglobin in 1959 — founding structural biology after more than twenty years of work.

"Please call me Max" were the first words Perutz offered almost every young scientist who came to him. He had a model of hemoglobin hanging from his office ceiling and had been chasing the one molecule since 1937 — twenty-two years before he solved it. The breakthrough was a trick: soak the crystals in mercury and silver to triangulate the missing information. Kendrew ran it first, on myoglobin. There was no computer screen in 1958, so the group drew the electron density by hand and stacked the contours on dozens of sheets of clear plastic until the molecule climbed up into three dimensions. What rose out of the sheets was a fat, irregular rod doubling back on itself with no symmetry anyone had predicted — the lab called it the sausage model, and Kendrew admitted only to surprise at its "unexpected twists," conceding the shape could not be recommended on aesthetic grounds. The first protein ever seen was a mess. It was also exactly right. The two men shared the 1962 Nobel Prize.

  • “Please call me Max”
  • “unexpected twists”

✓ verbatim The Molecule Hunters (v10) — "Protein Three-Dimensional Structure," combined Perutz & Kendrew profile.
Christian Anfinsen
AI-generated illustrated portrait of Christian Anfinsen

Christian Anfinsen 1916–1995

Proved that the amino acid sequence alone contains all the information a protein needs to fold — the principle behind everything from the folding funnel to AlphaFold — by unfolding ribonuclease completely and watching it refold to full activity on its own.

Anfinsen was a tall, Lincolnesque figure at the NIH who reached for his viola when the science got too loud. In 1960 he took ribonuclease apart with urea and beta-mercaptoethanol — a reagent that, the book notes, smells like rotten eggs crossed with skunk — and watched the enzyme collapse to zero activity, a random coil. Then he washed the chemicals away and waited. The molecule found its way back to one hundred percent activity, the molecular equivalent of an egg unscrambling itself. No template, no helper, no instructions but its own sequence. He stated it plainly to the Royal Swedish Academy in his 1972 Nobel lecture: the native fold is the lowest free-energy state the sequence can reach, in a given environment. Years later he left the lab and flew to Argentina during the Dirty War to confront government ministers over disappeared scientists. His method, the book observes, was the same one he had used on the enzyme: remove the denaturant, and see what refolds.

  • “The native conformation is determined by the totality of interatomic interactions and hence by the amino acid sequence, in a given environment.”

✓ verbatim The Molecule Hunters (v10) — "Protein Three-Dimensional Structure," Christian Anfinsen profile.
G. N. Ramachandran
AI-generated illustrated portrait of G. N. Ramachandran

G. N. Ramachandran 1922–2001

Created the Ramachandran plot — the map of sterically allowed backbone angles that every protein structure in the world is still validated against — in a single 1963 paper from the University of Madras.

Ramachandran trained as a physicist under C. V. Raman and built a new physics department at the University of Madras from almost nothing. In 1963, with two colleagues, he asked a question no one had put precisely before: for every amino acid in a chain, which pairs of backbone angles — phi and psi — are possible without atoms colliding? They calculated the allowed distances, shaded the forbidden combinations, and plotted the result axis by axis. The survivors clustered into two compact islands — one for the alpha helix, one for the beta sheet — with the rest of the plane nearly empty. Sixty years on, his plot is the first sanity check run on every new protein structure in the world. The Nobel Committee never called; the prizes that touched his field passed him by. He died in Chennai in 2001, after Parkinson's disease and the loss of his wife of fifty-three years.

✓ verbatim The Molecule Hunters (v10) — "Protein Three-Dimensional Structure," G. N. Ramachandran profile.
Four levels of protein structure
Four levels of protein structure Khan Academy (MCAT) — primary, secondary, tertiary, and quaternary structure, told conceptually.
Four levels of protein structure, walked through
Four levels of protein structure, walked through Biology Professor — a slower walkthrough of the four levels with structural diagrams.
Test yourself
Question 1 of 8 Score 0 / 0

A 33 kDa protein is analyzed by mass spectrometry. Using the lesson's rule of thumb for average residue mass, approximately how many amino acid residues does it contain?
Sources & Integrity

Sources & Integrity

every ID, attribution & fact-check — tap to open

Every structure, slide, simulation, and clip on this page is listed below with the source it came from. No molecular structure is AI-drawn — each one loads by accession ID from RCSB PDB or PubChem. This panel is generated from the lesson's own data file, so what it lists is what the page loads.

Molecular structures live data

  • Myoglobin — the first protein fold ever solved — RCSB PDB 1MBN · coordinates CC0 · PDB 1MBN · sperm whale · 153 residues · Kendrew 1958
  • Hemoglobin — quaternary structure — RCSB PDB 2HHB · coordinates CC0 · PDB 2HHB · human deoxyhemoglobin · α₂β₂ tetramer · Perutz
  • Collagen triple helix — a fibrous protein — RCSB PDB 1CAG · coordinates CC0 · PDB 1CAG · collagen model peptide · Gly-X-Y triple helix
  • Insulin — disulfide bridges from cysteine — RCSB PDB 1MSO · coordinates CC0 · PDB 1MSO · human insulin · A and B chains, three disulfide bonds
  • Ribonuclease A — Anfinsen's protein — RCSB PDB 7RSA · coordinates CC0 · PDB 7RSA · bovine pancreatic RNase A · 124 residues · four disulfides
  • Prion protein — when folding goes wrong — RCSB PDB 1QM2 · coordinates CC0 · PDB 1QM2 · human prion protein (PrP) · NMR · the helix-rich native fold
  • Heme — the prosthetic group myoglobin cradles — PubChem CID 26945 · CID 26945 · hemin, Fe-protoporphyrin IX (the ferric form of heme)

Simulations

  • Ramachandran plot explorer (drag φ/ψ and see the backbone respond) · Original interactive — Biochemistrypedia (Deppmann Lab).
  • Folding melt curve (cooperative thermal denaturation; tune Tm and watch the protein unravel) · Original interactive — Biochemistrypedia (Deppmann Lab).

Media (embedded, not rehosted)

  • Four levels of protein structure — YouTube O5gN-IK6uKs · Khan Academy (MCAT) — primary, secondary, tertiary, and quaternary structure, told conceptually.
  • Four levels of protein structure, walked through — YouTube 3SQxHo3ODxY · Biology Professor — a slower walkthrough of the four levels with structural diagrams.

Scientist profiles & quotes

  • Linus Pauling — The Molecule Hunters (v10) — "Protein Three-Dimensional Structure," Linus Pauling profile.
  • Frederick Sanger — The Molecule Hunters (v10) — "Protein Three-Dimensional Structure," Frederick Sanger profile.
  • Max Perutz & John Kendrew — The Molecule Hunters (v10) — "Protein Three-Dimensional Structure," combined Perutz & Kendrew profile.
  • Christian Anfinsen — The Molecule Hunters (v10) — "Protein Three-Dimensional Structure," Christian Anfinsen profile.
  • G. N. Ramachandran — The Molecule Hunters (v10) — "Protein Three-Dimensional Structure," G. N. Ramachandran profile.

Quotes are verbatim from the cited source. Profile text adapted from The Molecule Hunters (authors' IP). The 5 portraits are AI-generated engraving-style illustrations from the book's profiles — artistic depictions of each scientist, never photographs.

Lecture slides

  • Why sequence matters: four reasons · CH04 Protein Structure · slide 10 · Original — C. Deppmann (lecture) · reviewed by C. Deppmann (lecture author)

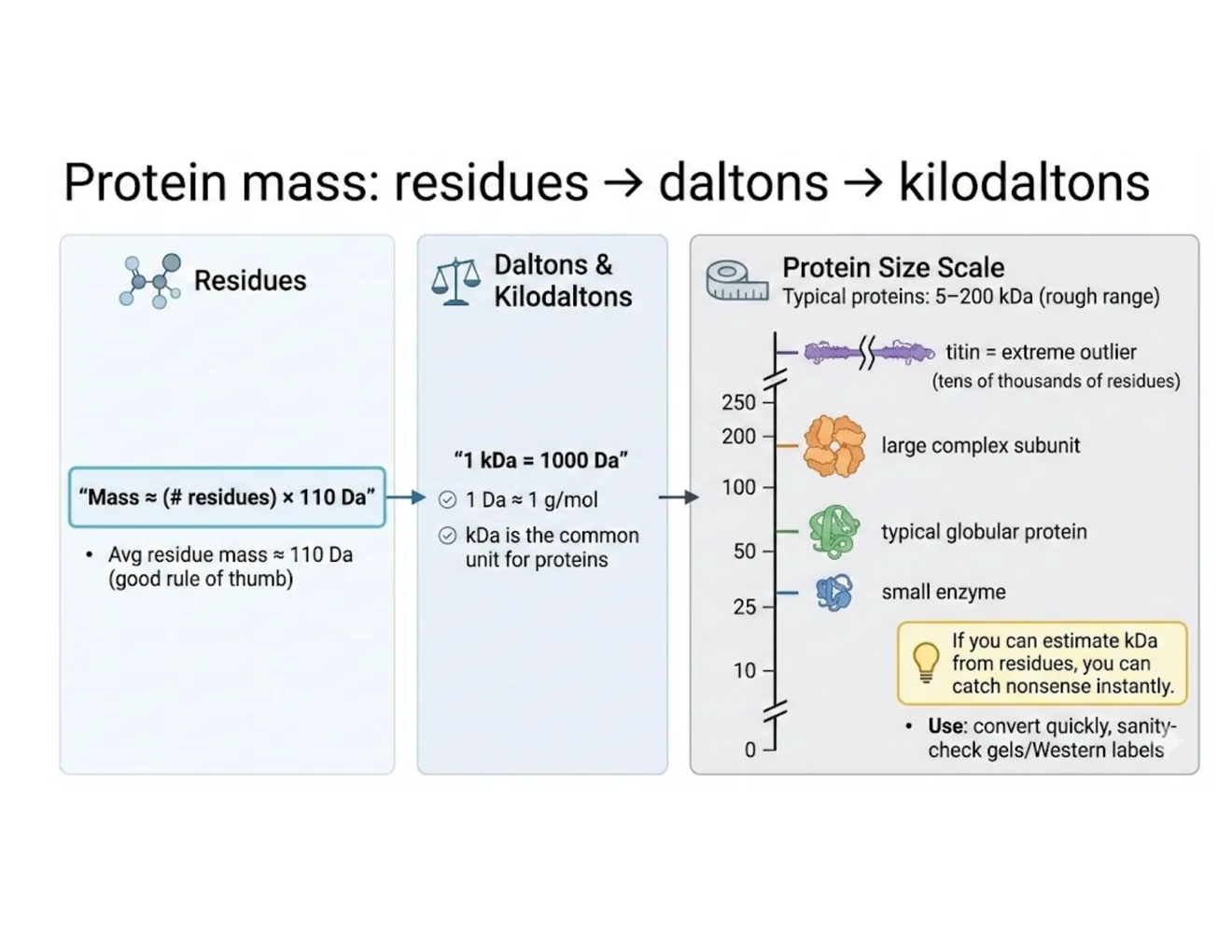

  • Protein mass: ~110 Da per residue · CH04 Protein Structure · slide 11 · Original — C. Deppmann (lecture) · reviewed by C. Deppmann (lecture author)

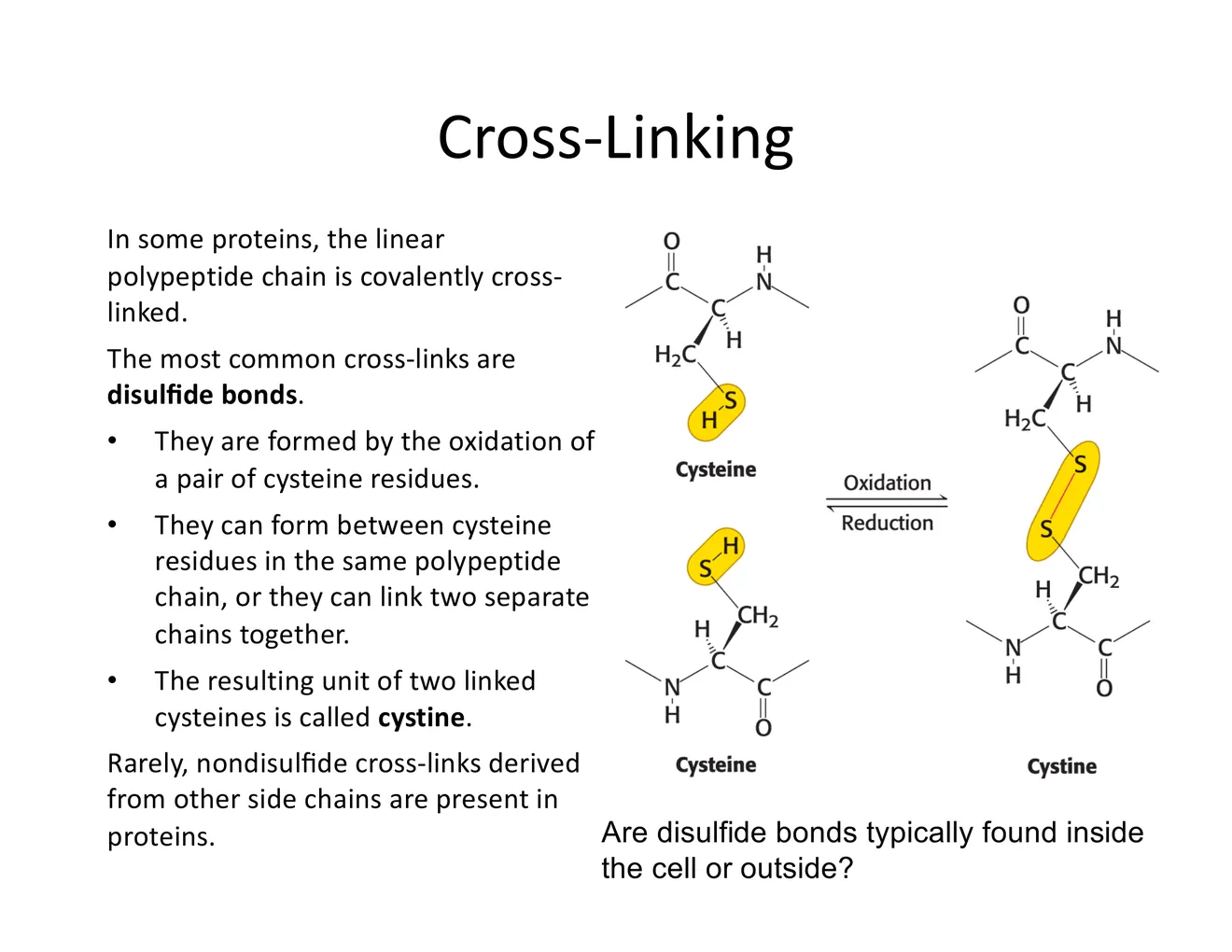

  • Cross-linking and disulfide bonds · CH04 Protein Structure · slide 8 · Original — C. Deppmann (lecture) · reviewed by C. Deppmann (lecture author)

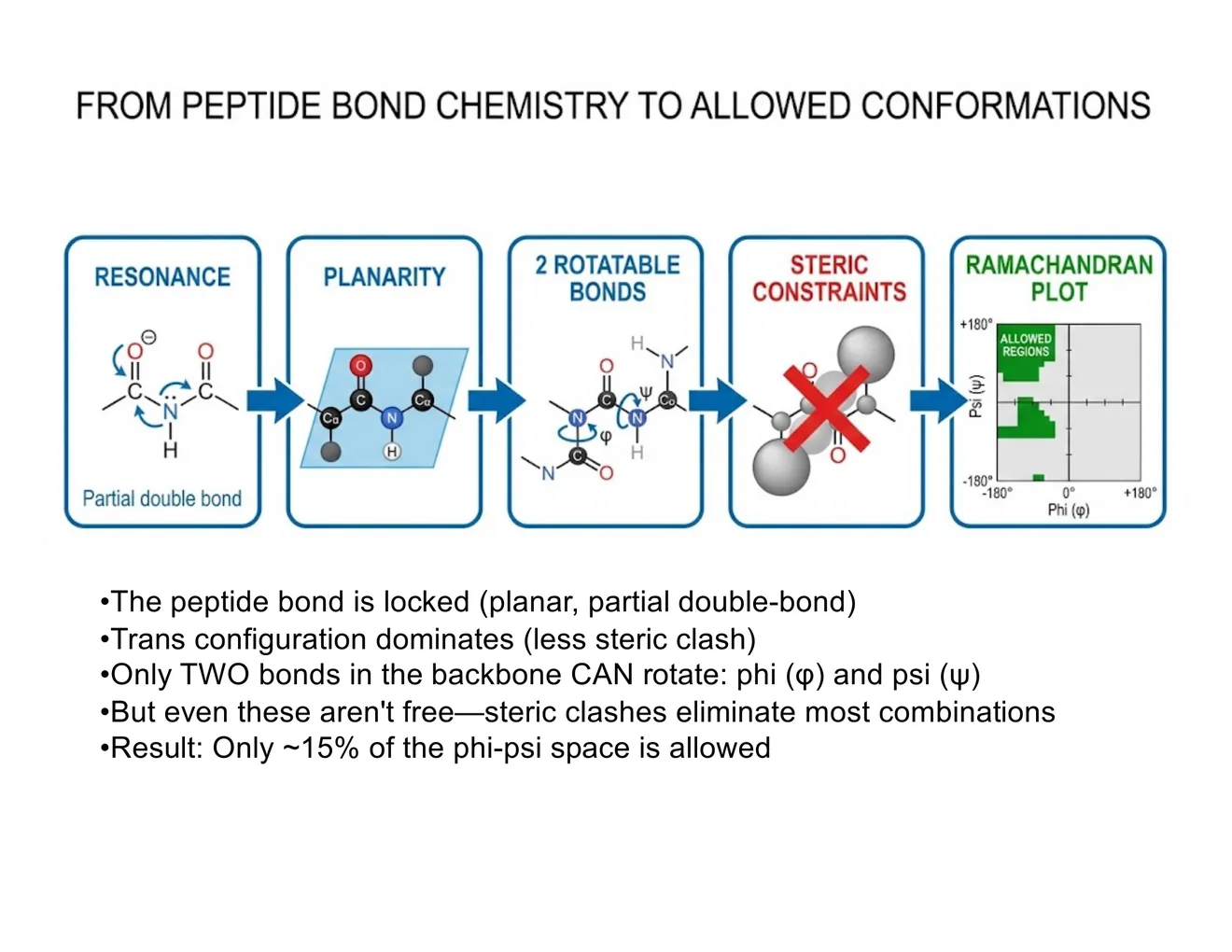

  • From peptide-bond chemistry to allowed conformations · CH04 Protein Structure · slide 18 · Original — C. Deppmann (lecture) · reviewed by C. Deppmann (lecture author)

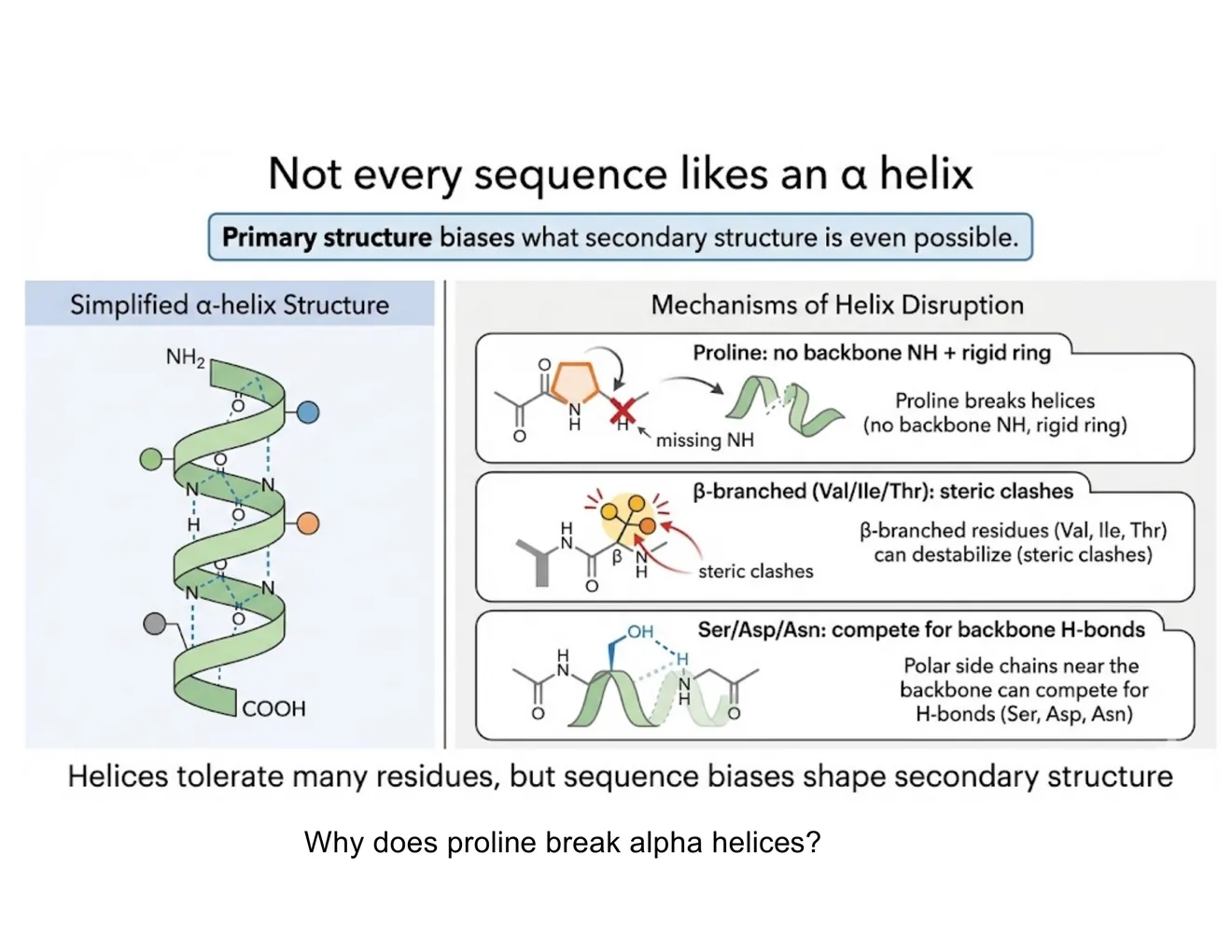

  • Not every sequence likes an alpha-helix · CH04 Protein Structure · slide 25 · Original — C. Deppmann (lecture) · reviewed by C. Deppmann (lecture author)

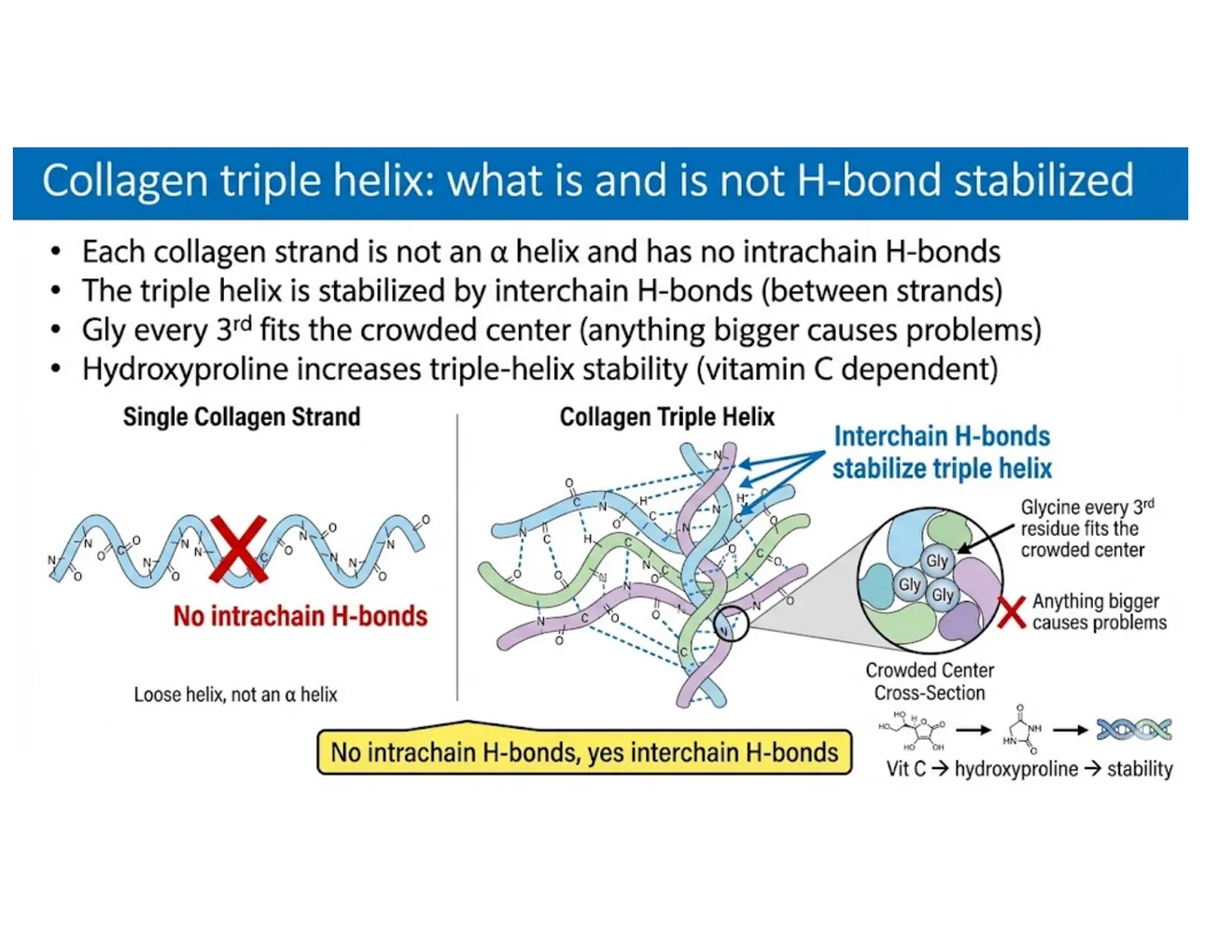

  • The collagen triple helix · CH04 Protein Structure · slide 39 · Original — C. Deppmann (lecture) · reviewed by C. Deppmann (lecture author)

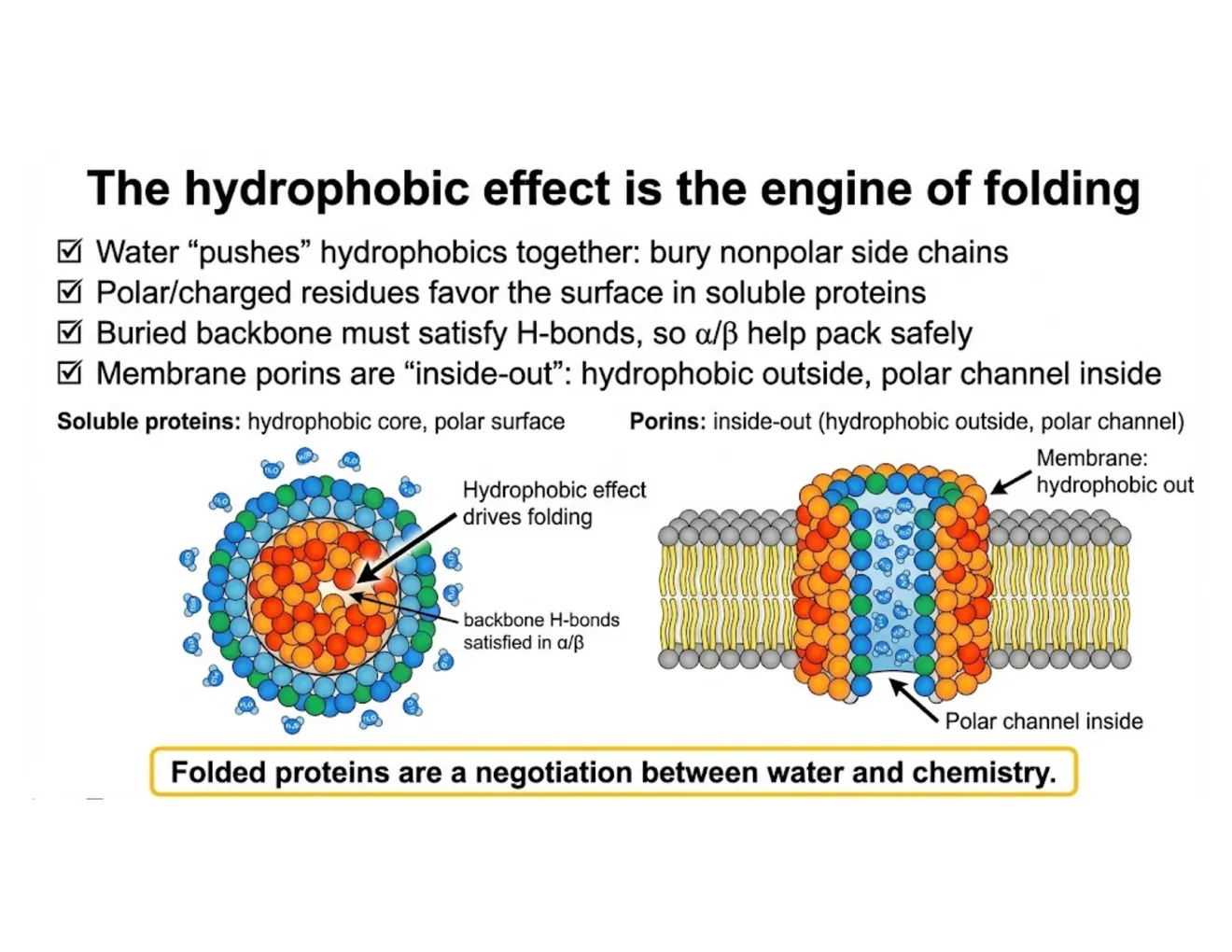

  • The hydrophobic effect is the engine of folding · CH04 Protein Structure · slide 43 · Original — C. Deppmann (lecture) · reviewed by C. Deppmann (lecture author)

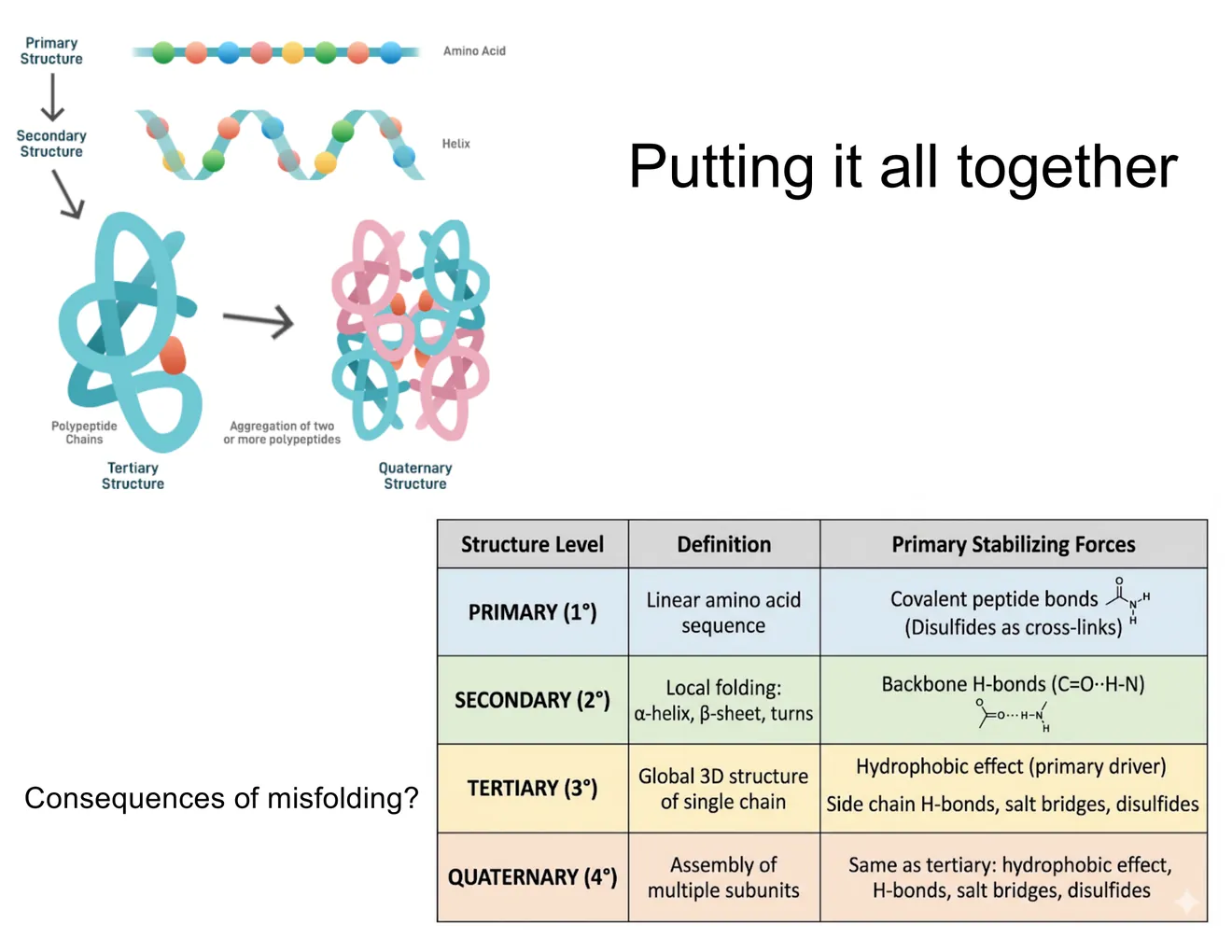

  • Putting it all together: the four levels · CH04 Protein Structure · slide 46 · Original — C. Deppmann (lecture) · reviewed by C. Deppmann (lecture author)

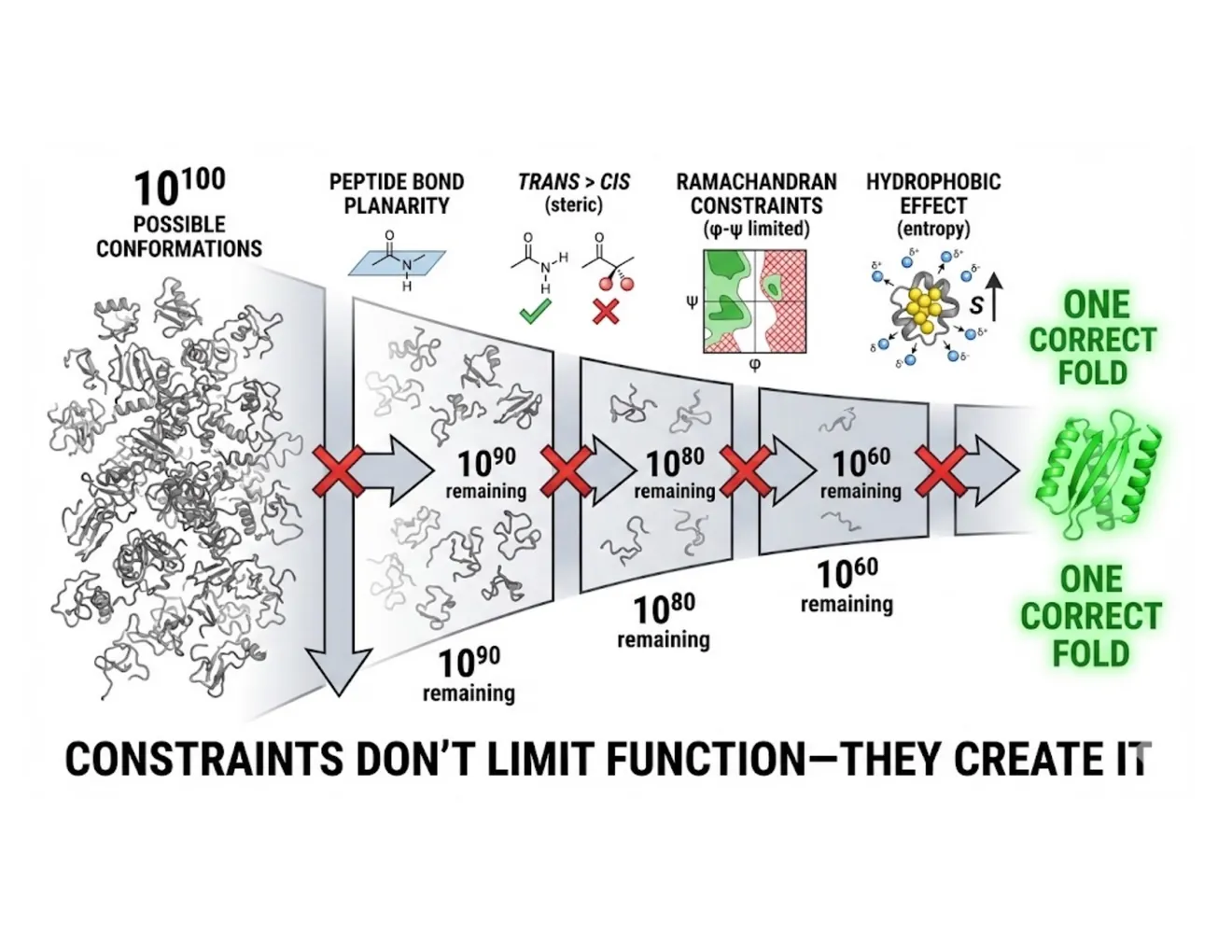

  • Constraints don't limit function — they create it · CH04 Protein Structure · slide 48 · Original — C. Deppmann (lecture) · reviewed by C. Deppmann (lecture author)
  • Levinthal's paradox · CH04 Protein Structure · slide 54 · Original — C. Deppmann (lecture) · reviewed by C. Deppmann (lecture author)

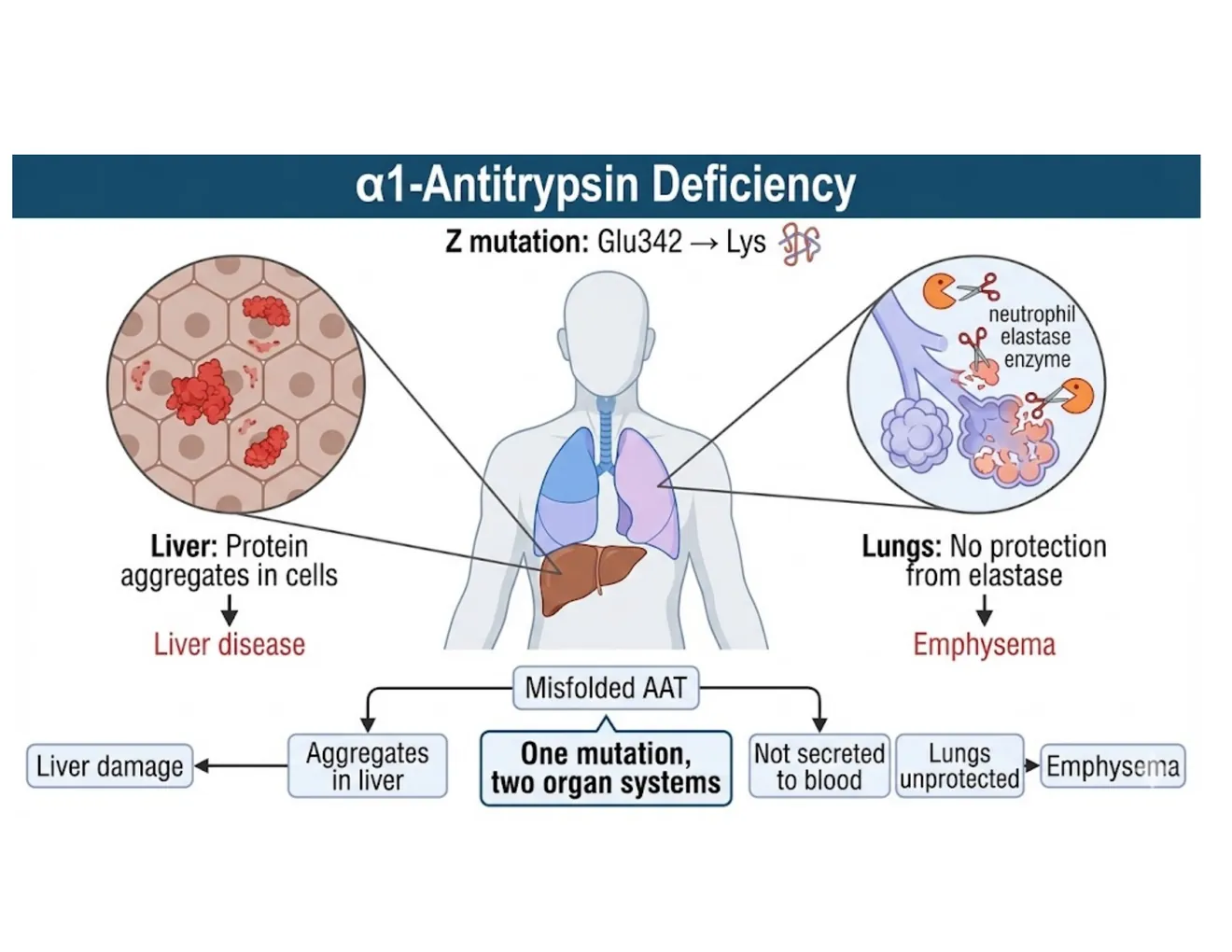

  • One mutation, two organ systems · CH04 Protein Structure · slide 47 · Original — C. Deppmann (lecture) · reviewed by C. Deppmann (lecture author)
  • How a prion propagates · CH04 Protein Structure · slide 61 · Original — C. Deppmann (lecture) · reviewed by C. Deppmann (lecture author)

Instructor's own slides; screened for accuracy and to exclude reproduced publisher figures.

Images & figures

This lesson carries no standalone raster figures beyond the ones itemized in this panel: its 12 lecture slides (each listed above with its deck, its credit, and the person who screened it for accuracy and copyright) and its 5 scientist portraits (AI-generated illustrations from the book's profiles, disclosed in the Scientist profiles panel). Every 3D structure is rendered live from an accession ID.

integrity Two different things are checked here, and they are worth telling apart. The build verifies the mechanical facts: every accession ID resolves, every local asset exists, every question's answer key points at a real choice, and any AI-generated scientific figure names the human who checked it. The scientist portraits are AI-generated artwork, labeled as such above — they depict the person, they carry no science, and nothing on this site asks you to trust a picture of a face. The science is checked by a person — Prof. Deppmann cleared each lecture slide for accuracy and for copyright, and his name is on every one of them in the panel above. Questions are original; MCAT-style items are written for this site and are not real AAMC questions. Banned sources (the Tymoczko textbook, publisher decks, copyrighted figures) are not used.

Like I'm 5

Think of a long beaded necklace. You might think you could bend it into any shape at all, but the beads bump into each other, so it can really only bend a few ways. Because of that, the necklace always folds up into the same neat shape by itself — fast, every single time. Proteins are tiny necklaces inside your body, and the order of their beads tells them exactly how to fold. If even one bead is the wrong kind, the necklace folds wrong, and that can make you sick.
High school

A protein is a chain of amino acids, and the order of those amino acids is its primary structure. You might expect a floppy chain to take any shape, but it can't. The backbone can only rotate at two bonds per amino acid, and even those are limited because the atoms bump into each other. Those limits force the chain into repeating patterns — coils called alpha helices and flat strands called beta sheets (secondary structure) — which then pack into one compact 3D shape (tertiary structure). Several chains can join into one unit (quaternary structure), like hemoglobin's four pieces — two of each of two kinds. The key idea: the sequence decides the shape, and the shape decides the job. Change one amino acid and you can break it — that's what causes sickle cell anemia.
College

Protein structure has four levels: primary (sequence), secondary (local backbone H-bond patterns — alpha helices and beta sheets), tertiary (the full 3D fold, driven by R-group interactions and the hydrophobic effect), and quaternary (multi-subunit assembly).

The geometry comes from one constraint. The peptide bond is planar (partial double-bond character, ~1.32 Å, no rotation), so only two backbone bonds per residue rotate: phi (φ, N–Cα) and psi (ψ, Cα–C). Plot φ against ψ on a Ramachandran plot and only ~15% of the space is sterically allowed; the allowed regions map directly onto alpha-helix (φ ≈ −57°, ψ ≈ −47°; 3.6 residues/turn; i → i+4 H-bond) and beta-sheet geometry.

Anfinsen's ribonuclease experiment proved all the folding information is in the sequence: full denaturation (urea + reductant) abolishes activity, and slow renaturation restores it completely, so the native fold is the thermodynamic minimum. This resolves Levinthal's paradox (a random search of ~10⁴⁷-plus conformations is impossible) via progressive stabilization of intermediates — the folding funnel.

The rule has limits: intrinsically disordered proteins fold only on binding, and prions reach a second stable, aggregation-prone fold from the same sequence.
Graduate

The conformational space of a polypeptide is governed by backbone dihedrals φ and ψ; the peptide bond ω is fixed near 180° (trans) by ~40% double-bond character, with cis disfavored except at X-Pro. Ramachandran analysis (hard-sphere then refined potentials) shows allowed regions are dictated by 1,4 and 1,5 steric overlap, partitioning into the αR basin, the broad β region, and the small αL basin (accessible mainly to glycine, which lacks a Cβ).

Anfinsen's thermodynamic hypothesis — the native state is the global free-energy minimum encoded by the sequence in a given environment — is the conceptual foundation. Levinthal's paradox is resolved not by a unique pathway but by a biased energy landscape: the folding funnel, where native-like contacts are enthalpically favored and configurational entropy decreases as the chain descends, with kinetic traps as local minima. The dominant driving force is the hydrophobic effect (favorable solvent-entropy gain on burial of nonpolar surface), with backbone H-bonding and packing providing specificity.

The sequence→structure map is many-to-one but not strictly one-to-one. IDPs occupy a region of sequence space (low hydrophobicity, high net charge) that fails to fund a stable core; metamorphic proteins interconvert between comparable-energy folds. Prions are the sharpest challenge: PrPᶜ (~42% helix) and PrPˢᶜ (~43% sheet) share one sequence, implying PrPᶜ is a kinetically trapped product while the aggregated, possibly thermodynamically favored PrPˢᶜ is normally inaccessible. AlphaFold's success (learning the map from ~170,000 structures) is the strongest empirical evidence that the map is, for folded domains, sequence-determined — while its blind spots (dynamics, disorder, PTMs) mark exactly where the simple rule ends.

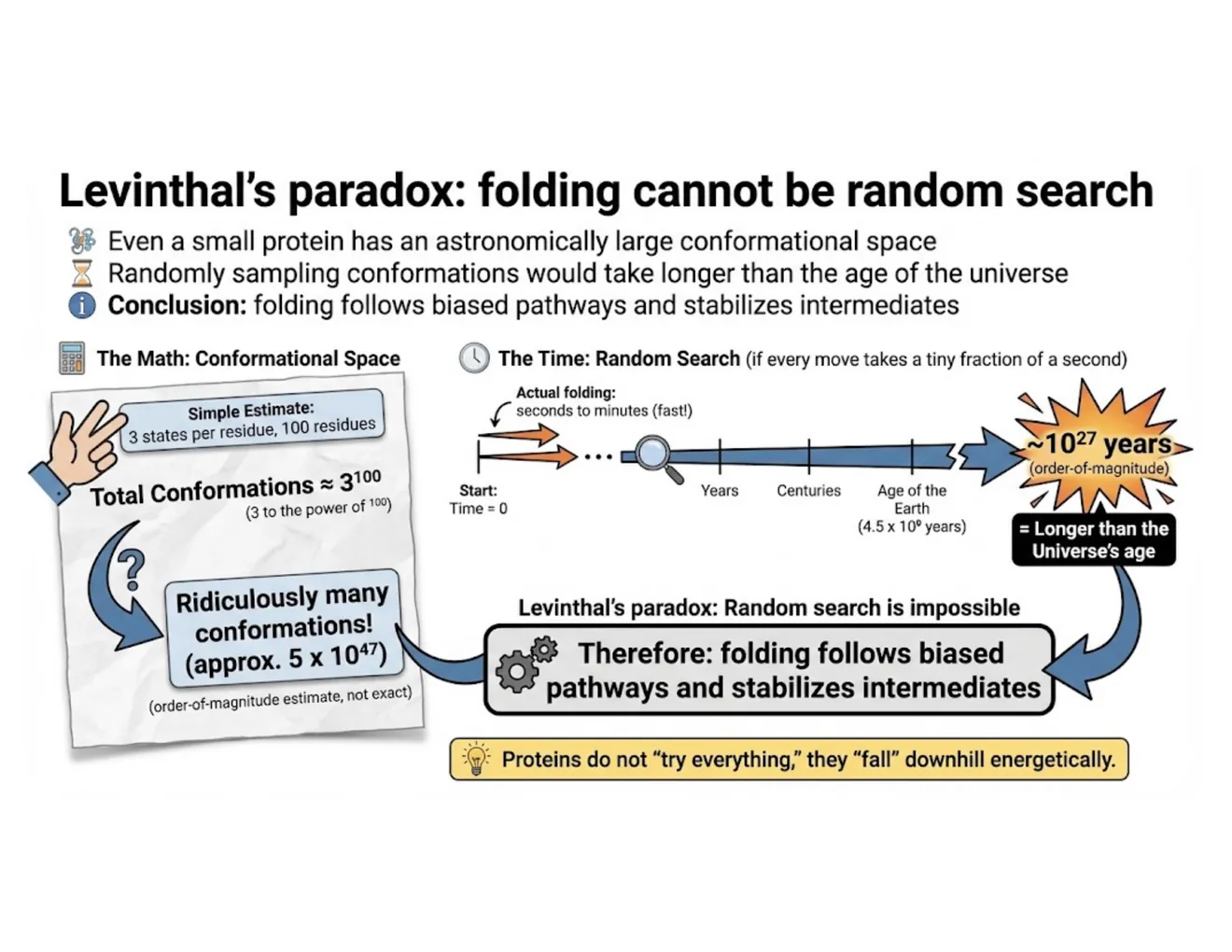

A protein has more shapes than the universe has time to try

A chain of 100 amino acids, with just three options at each backbone position, can fold roughly 10⁴⁷ different ways. If a protein tried each shape in turn it would take longer than the age of the universe to find the right one — yet the myoglobin in your muscle folds in milliseconds, every time, without a single wrong commitment. That gap between 10⁴⁷ and a few thousandths of a second is the whole problem this lesson exists to solve. The answer is not search. The answer is constraint: the chemistry forbids almost every shape before folding even begins.

— CH04 lecture (Levinthal's paradox opener)
Four Nobel Prizes, two scientists, one chapter

Only two people anchor this chapter, and between them they hold four Nobel Prizes. Linus Pauling took Chemistry in 1954 and Peace in 1962 — still the only person with two unshared Nobels in different fields. Frederick Sanger took Chemistry in 1958 and again in 1980, the only person to win it twice. Sanger was so uninterested in distinction that he turned down a knighthood: a knighthood, he said, would make you different, and he did not want to be different.

— CH04 lecture (the Nobel laureates of protein structure)
The peptide bond that would outlive you 400 times over

Left alone in water, with no help, a single peptide bond takes 400 to 600 years to break. The bonds holding your proteins together are that stable. And yet you digest a steak in an afternoon — because a protease speeds the same reaction up about ten billion-fold. The bond's stubbornness is the point: proteins last because the spontaneous reaction is hopelessly slow, and they turn over only when an enzyme decides it is time.

— CH04 lecture (peptide-bond stability)
The same flaw that breaks a helix builds a rope

Proline is the troublemaker of the alpha helix. Its ring locks the backbone into one angle, and its nitrogen has no hydrogen to donate, so a proline punched into a helix snaps the chain of hydrogen bonds that holds the helix together. But take that exact same rigidity — the locked ring, the missing donor — and wind three proline-rich chains around each other, and you get collagen: the triple helix in your tendons, your bone, your skin. What destroys one structure is what makes the other possible. Chemical properties are not good or bad. They are good or bad for a given job.

— CH04 lecture (proline: helix breaker, collagen builder)
